New Everton Stadium - Hill Dickinson Stadium

I sightline surveyed GP about 25yrs ago. As far as I remember the Top Balcony is 38°. I'm not home for another 3wks, but will check then.

There is a slight difference in rake angles for upper and lower tiers on East, North and West stands. Again, I would have to check the dwgs for accuracy, but think the upper tier could be 35°. 34° was the guideline's max, but think there is some leeway now.

I have a LiDAR scan of GP somewhere. If I can find it and get chance I should be able to do some sections.


Attachments

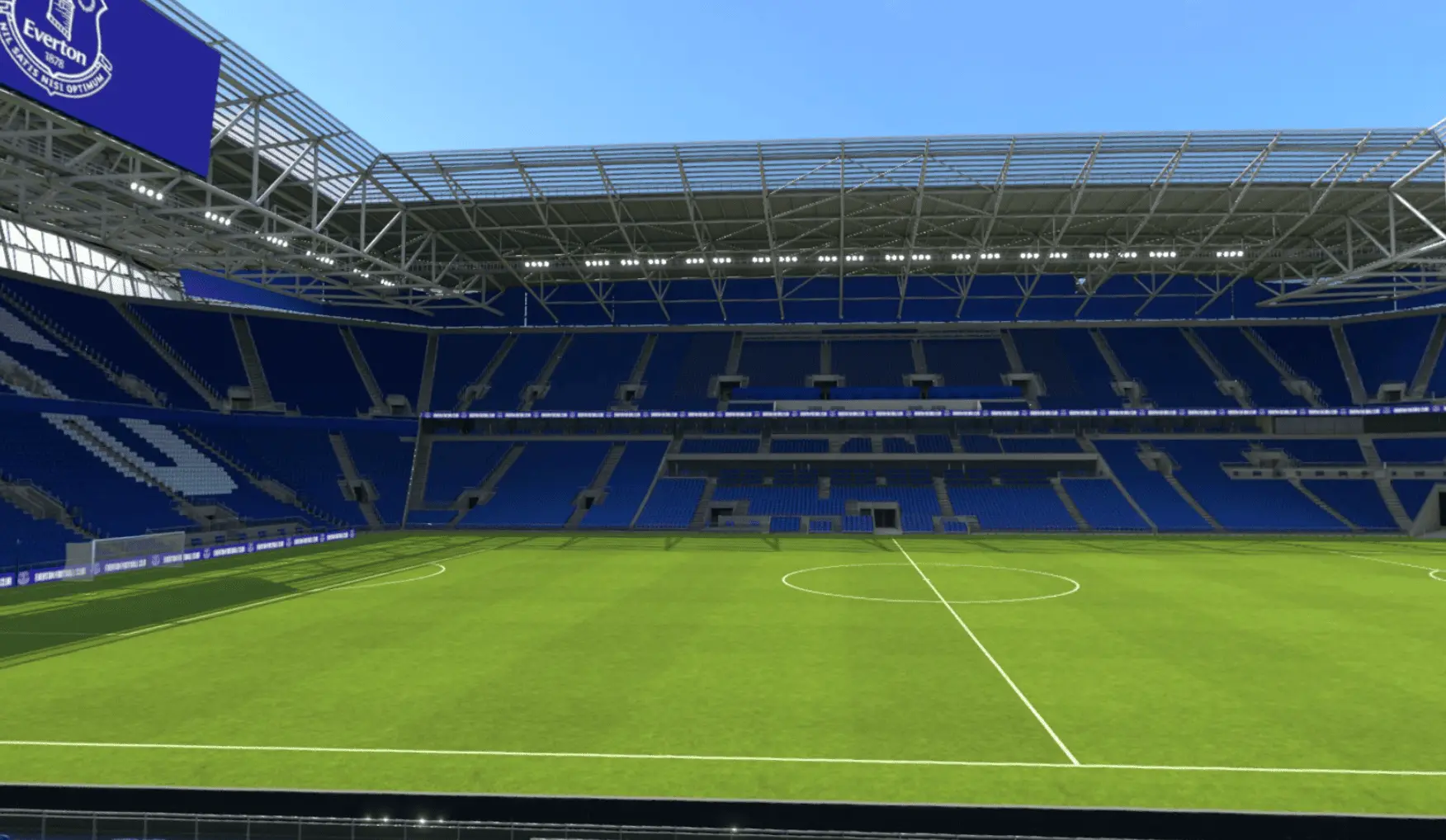

  • IMG_1149.webp
    97 KB · Views: 52
